Parfu Roof and Wall Panel Roll Forming Machine

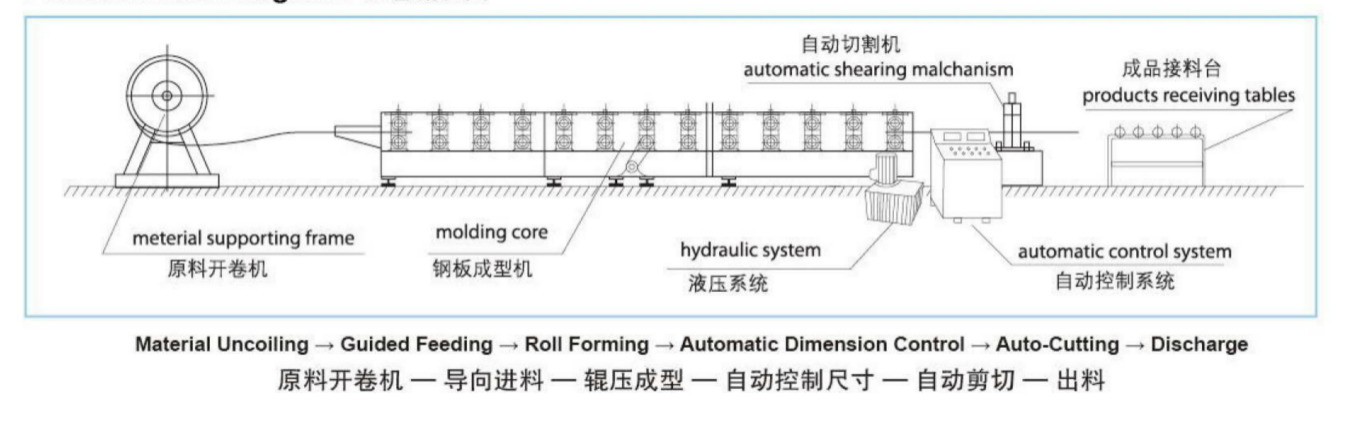

Roof and Wall Panel Roll Forming Machine is an automated line that turns flat metal coils into long panels with precise shapes. Key parts include an uncoiler, entry guide, forming stations, a cutting device (such as a flying saw or shear), an output conveyor, and a control system. Benefits include fast production, little material waste, accurate sizing, and the ability to create different profiles by changing the rollers.
Why choose us？
Parfu manufactures and sells various roll forming machines. It designs and customizes machines for many companies that need roll forming applications, and provides cold roll forming machine parts and accessories. At the same time, it provides customers with a full range of roll forming solutions and automated roll forming production lines.
All roll forming machines are processed, assembled, tested and shipped in our factory in Cangzhou, China to ensure product quality and on-time delivery. We are committed to providing customers with efficient and reliable solutions to promote innovation and development in the industry.
Machine Models

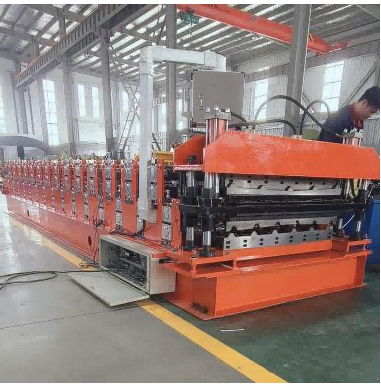

Double-Layer Roll Forming Machine

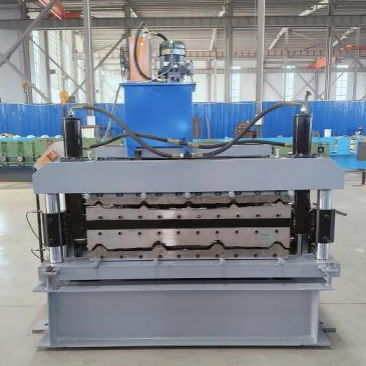

840/914 Double-Layer Machine

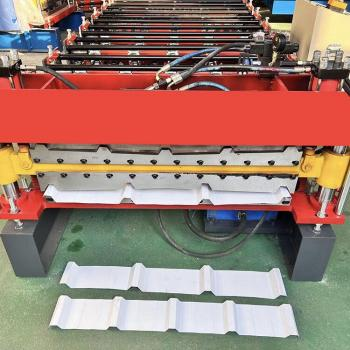

914/850 Small Ripples Double - Layer Equipment

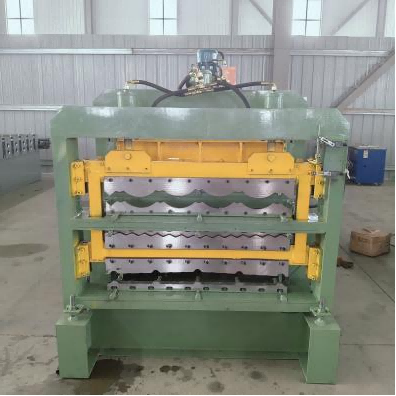

Three-layer Roll Forming Machine

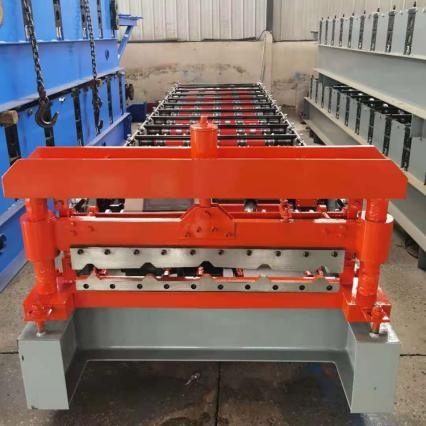

Single Plate Color Steel Roll Forming Line

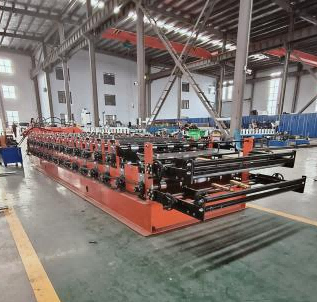

840/1025 Color Steel Roll Forming Machine

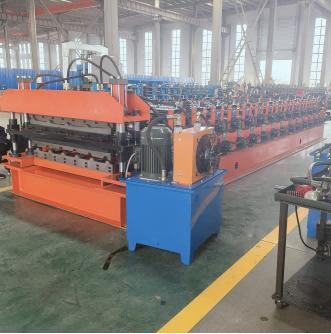

860/1040 Color Steel Roll Forming Machine

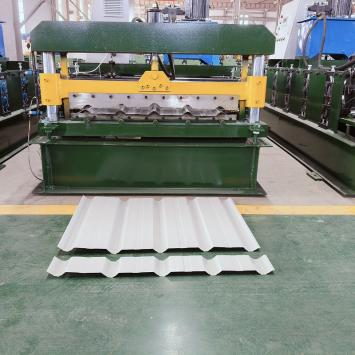

750 Color Steel Roll Forming Machine

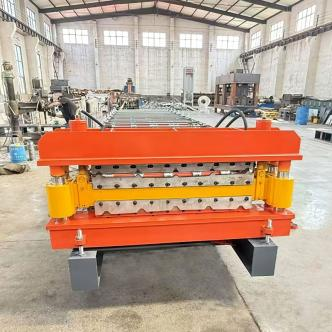

900/1080 Color Steel Roll Forming Machine

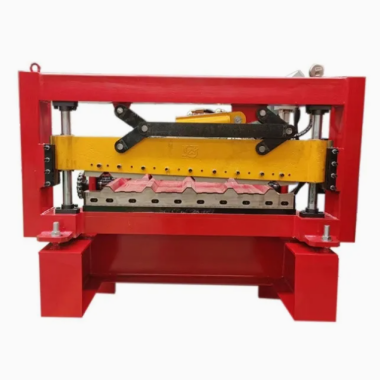

910 Color Steel Roll Forming Machine

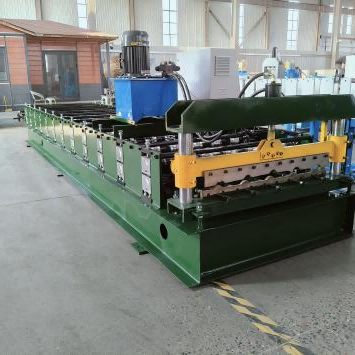

1000 Color Steel Roll Forming Machine

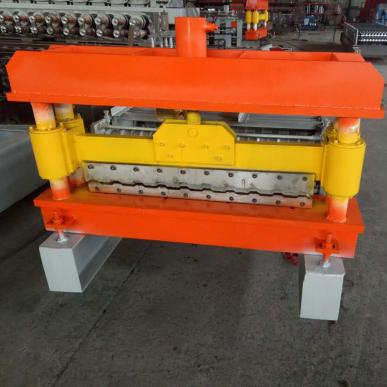

850 Corrugated Color Steel Roll Forming Machine

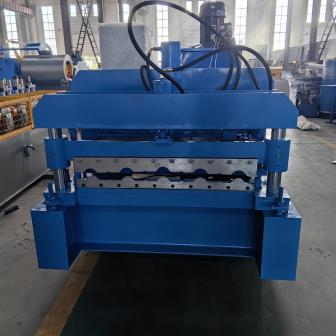

820 Glazed Roof Tile Machine

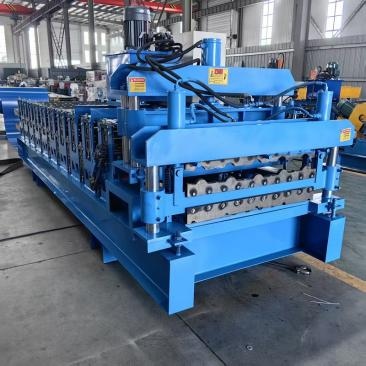

840 Glazed Roof Tile Machine

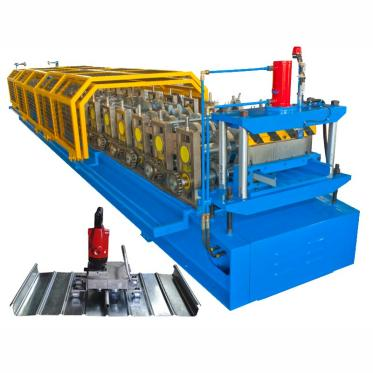

Standing Seam Metal Roof Roll Forming Machine

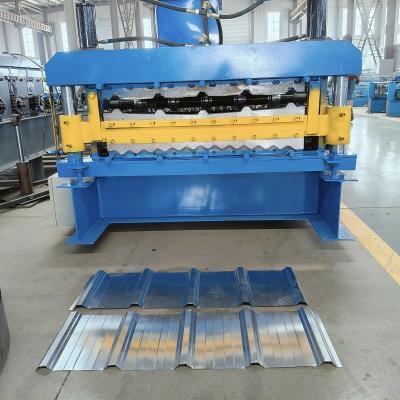

High-speed Roof Panel Machine
Roof and Wall Panel Roll Forming Machine – Technical Specification
This production is widely used in the field of metal processing. Roll forming process refers to a processing method that uses mechanical force and plastic deformation principles to bend, stretch, press and other processes on metal materials to achieve the required shape and size.
Core Technologies and Performance Parameters
1. High-precision Feeding and Leveling System
Adopts a tensioning Uncoiler, 3/5-ton load capacity, with brakes, manual tensioning.

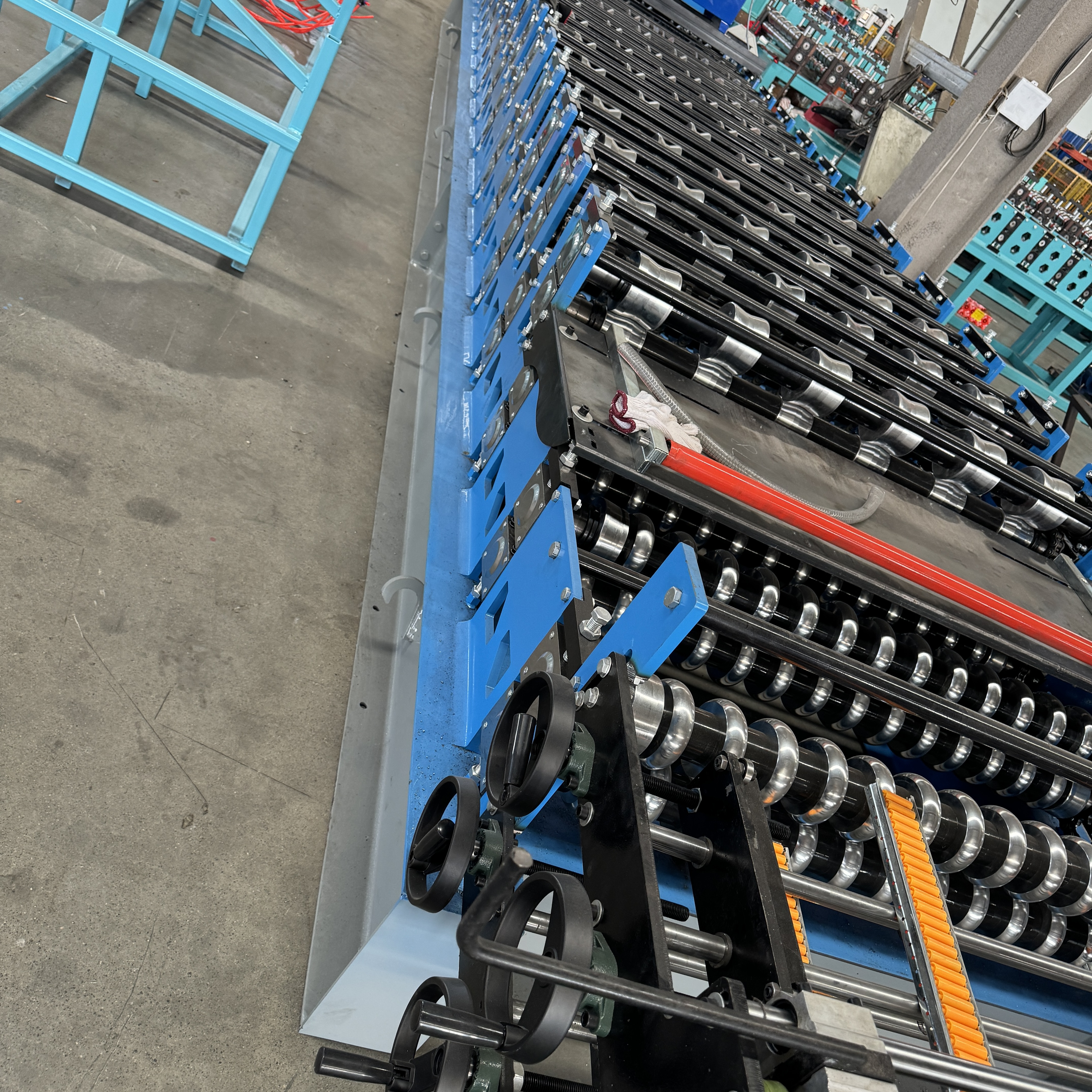

2. Forming Main Machine
The core is a multi-pass progressive roll forming unit (usually 12-20 passes). Each roll is driven by an independent servo motor or gearbox.
- Forming speed: 30-60 meters/minute (adjustable)
- Forming accuracy: cross-sectional profile tolerance ±0.1mm
- Driving mode: servo/gearbox transmission
- Roller material: GCr15 bearing steel, surface hard chrome plated
3. Hydraulic Shearing Machine System
Hardness: HRC58-60;
Material: Cr12MoV
4. PLC Automatic Electrical Control System
Features: Human-machine interface. The entire line is controlled by PLC with a liquid crystal display touch screen.
Application: Only one operator is needed to set the cutting length and quantity for each order.
Advantages of split-type cabinet: When the machine arrives at the site, only the power supply needs to be connected during operation, and no other wires need to be connected.
5.5KW, 380v
PLC brand: Olinuo
