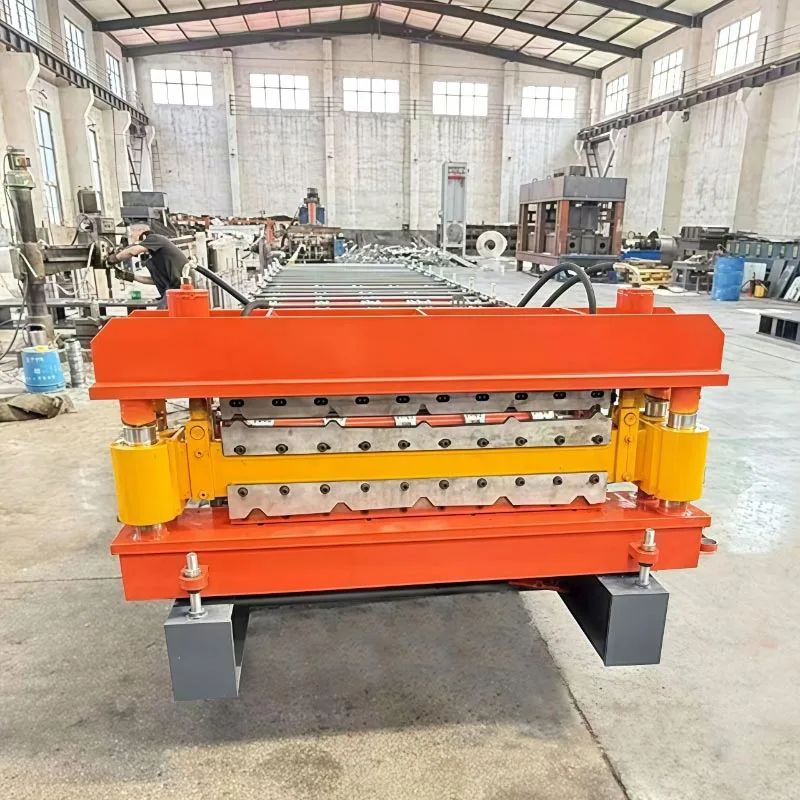

900/1080 Color Steel Roll Forming Machine

Engineered for top performance, this 900/1080 Color Steel Roll Forming Machine sets a high standard for efficiency and precision in the construction materials sector. It works with pre-painted galvanized steel coils, also known as color steel. In one smooth, continuous process, it transforms these coils into strong, durable, and visually appealing building panels.

Designed for large-scale industrial projects and specialized roofing manufacturers, this system integrates multiple functions into one line. It performs uncoiling, roll forming, precision cutting, and automatic stacking. The machine easily switches between 900mm and 1080mm profile formats, providing exceptional operational flexibility. This versatility allows one production line to meet diverse architectural needs and changing market demands. The Machine features a heavy-duty frame and is guided by a sophisticated PLC control system. This robust design guarantees consistent, high-quality products. It also minimizes material waste and delivers a strong return on investment by maximizing productivity and reducing labor costs.

Detailed Description

The 900/1080 Color Steel Roll Forming Machine is a complete, synchronized system. Every component is essential, working together to transform a raw coil into a finished, high-quality panel.

Core Components and Workflow:

Decoiler & Feed-in Guide:
The production begins at the heavy-duty decoiler. It securely handles large steel coils up to 5 tons. An optional hydraulic arm allows for safe and efficient coil loading. For the forming stage, an inlet guide table is critical. It positions the sheet with perfect alignment, preventing lateral drift and any resulting material deformation.

Leveling and Feeding Unit:
This critical stage consists of a series of leveling rollers that remove any coiling-induced curvature or imperfections from the steel sheet. This ensures the metal is perfectly flat before forming. This is critical for achieving accurate dimensions and a flawless appearance in the final panel.
A servo-driven system feeds the sheet into the roll former with high accuracy. The PLC controls the cutting length. This means every panel is produced to the exact length you require.

Roll Forming Station:

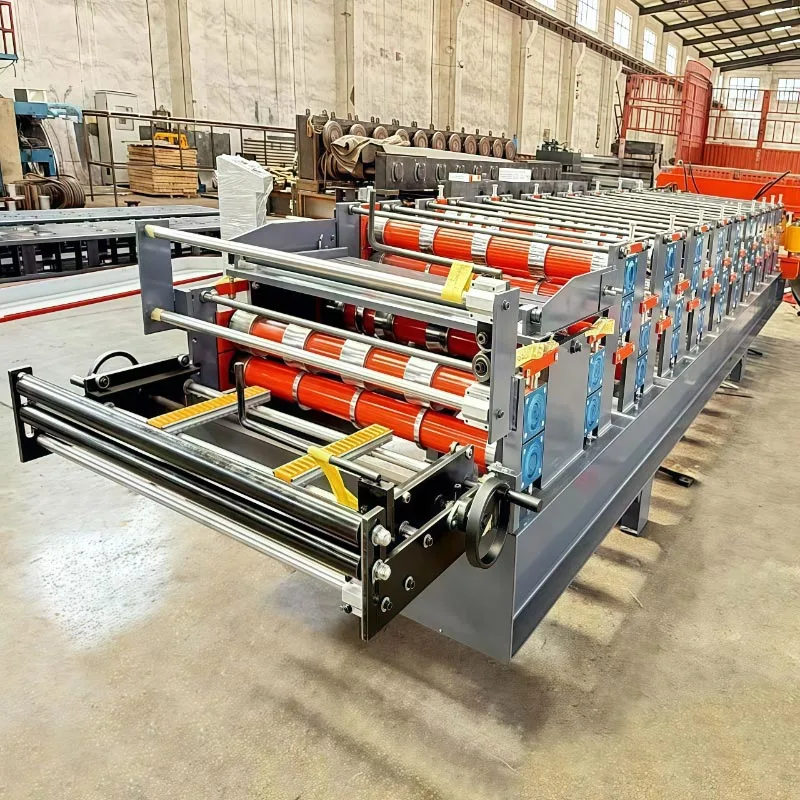

This forming station is the heart of the machine. It uses 16 to 22 stands (for this profile) of hardened steel rolls. Each roll is carefully engineered and positioned to create the perfect profile.

Each set of rolls progressively bends the flat sheet, millimeter by millimeter, into the final 900/1080 panel profile. The high-precision gears are housed in a reinforced gearbox and run in an oil bath. This ensures smooth, powerful, and quiet operation, while also guaranteeing a long service life.

PLC Control System & HMI:
The entire production line is managed by a Programmable Logic Controller (PLC). The operator interacts with the system through a user-friendly Human-Machine Interface (HMI) touchscreen panel.
From this screen, operators can set the desired panel length, production quantity, cutting speed, and other parameters. The system automatically calculates optimal operation sequences and stores recipes for different jobs.

Precision Cutting System:
After the sheet is fully formed, it travels to the cutting unit. A high-speed rotary flying cut-off system is employed. The flying cutter synchronizes, cuts, and resets without stopping the line. It moves with the panel, ensures a clean and burr-free cut, and returns to start immediately for the next cycle. eliminates production pauses and drastically increases output.

Output Conveyor & Automatic Stacker:
In the final stage, powered rollers convey the finished panels. An automatic stacking system then organizes the output, counting panels and creating perfectly organized bundles for removal.
This automated process eliminates manual handling and prevents surface scratches. It then prepares bundles for strapping and shipment, which significantly reduces labor costs.

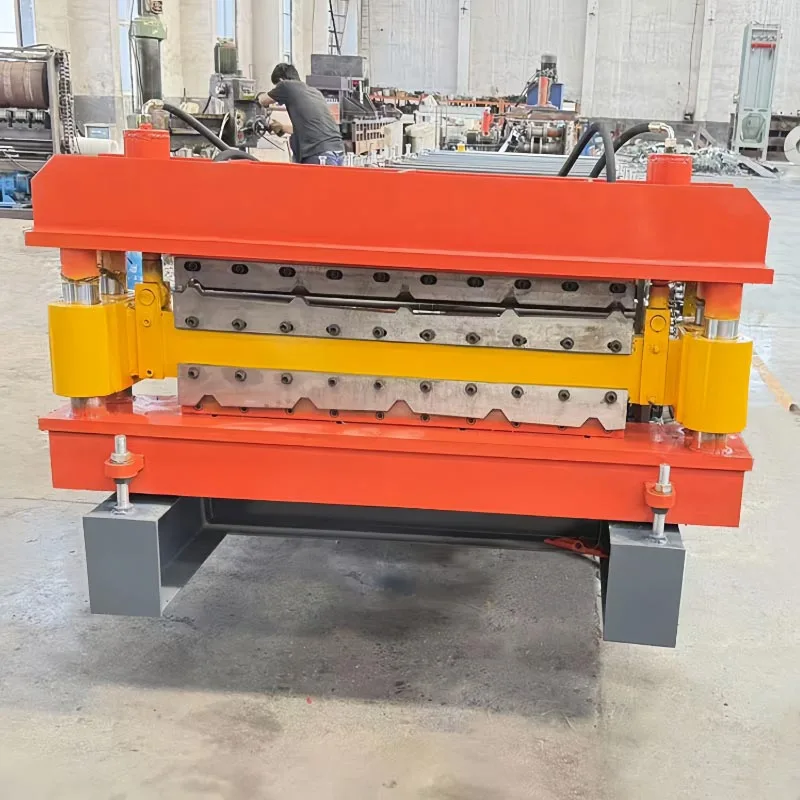

The 900/1080 Profile:

This 900/1080 Color Steel Roll Forming Machine produces high-performance concealed-fix panels. The "900" and "1080" in its name refer to the panel's coverage width in millimeters. The formed profile is designed with several key advantages:

Concealed Fixing: Fasteners are discreetly concealed under overlapping panels, resulting in a smooth, modern profile and improved weather resistance.

High Ribs: The panels feature deep, structurally stiff ribs that provide exceptional load-bearing capacity for snow, wind, and foot traffic.

Drainage Channels: The integrated channels are designed to manage water runoff and prevent leakage.

Strong Side Lap: The interlocking side laps create a robust, weather-tight seal between panels.

Technical Parameters

Key Advantages & Benefits

Unmatched Flexibility and Versatility: The key advantage of this machine is its dual-width capability. It produces two popular industrial panel widths—900mm and 1080mm—on a single, versatile platform. This system lets manufacturers respond in real-time to custom orders. It eliminates the need for dedicated production lines, lowers costs, and optimizes factory space.

Superior Production Efficiency: Engineered for speed and efficiency, this system enables non-stop production at up to 45 meters per minute. It quickly fulfills large panel orders, guaranteeing you meet deadlines and boost overall productivity.

Exceptional Precision and Quality:

Profile Consistency:Precision is built into every panel. Our multi-stage forming process, with its high-precision rollers, is engineered to deliver exact geometric specifications with absolute consistency.

Cutting Accuracy:Our precise servo cutting simplifies installation and saves you money. Panels fit together perfectly, which slashes on-site labor requirements and minimizes material waste.

Robust and Durable Construction: This 900/1080 Color Steel Roll Forming Machine is built for a long operational life under demanding conditions. Heavy-Duty Frame: The welded and stress-relieved frame prevents flexing and vibration, which is critical for maintaining long-term precision.

High-Quality Rollers & Shafts: Built to Last. Our rollers and solid shafts are manufactured from GCr15 bearing steel. This high-grade material provides exceptional wear resistance and the strength needed for heavy-duty materials up to 0.8mm thick.

Advanced Automation and Ease of Use: The PLC control system simplifies complex operations.

User-Friendly Interface: With simple data entry and fully automated operation, the system eliminates human error for flawless production.

Fault Diagnostics: To simplify maintenance, the system includes self-diagnostic functions. It provides easy-to-understand alerts about potential issues, enabling quick resolution and reduced downtime.

Recipe Memory: Save job settings for different panel lengths and quantities for quick changeover between production runs.

Economic Benefits:

Reduced Labor Costs: The line is fully automated from feeding to stacking. It is designed to operate with just 1-2 personnel.

Minimized Material Waste: You will see a dramatic drop in material scrap. This cost-saving benefit comes from the machine's high cutting accuracy and stable forming process.

Low Maintenance: Built for reliability, the machine features an enclosed, oil-bath gearbox that needs very little maintenance. Its robust construction also minimizes repair needs and costs.

Design, Manufacturing, and Support

Engineering and Design Philosophy:

This machine is engineered with advanced CAD/CAM and FEA. This ensures a rugged frame that won't deform under load. The tooling forms the panel smoothly in a gradual process. This minimizes material stress, protecting both the paint and the steel's strength.

Manufacturing and Quality Control:

Precision Machining:Key components are manufactured on CNC machines. This ensures strict consistency for every roller and perfect alignment for all shafts and bearings.

Hardening and Surface Treatment: Our forming rollers are heat-treated and chrome-plated for maximum durability. This results in a hard, smooth surface that minimizes friction and prevents scratching the material's coating.

Installation, Training, and After-Sales Service: A responsible supplier provides a comprehensive support package.

Installation & Commissioning: Our engineers can oversee installation and commissioning on-site. This service guarantees your machine is set up correctly and starts operation in optimal condition.

Comprehensive Training: Your personnel will receive complete operational and maintenance training. This prepares them to run the machine safely and efficiently.

Global Spare Parts Support: Your operation is backed by our guaranteed supply of genuine parts and expert technical support. Keep your operations running with our global support network. We provide fast, expert assistance to minimize downtime and keep you on schedule.

Warranty: A standard warranty is provided, covering manufacturing defects and offering peace of mind.
