850 Corrugated Color Steel Roll Forming Machine

Product Introduction

850 Corrugated Color Steel Roll Forming Machine transforms raw, flat metal coils—such as pre-painted galvanized steel, aluminum, or stainless steel—into the classic wavy profile of 850 corrugated sheets.This is done in one continuous, automated process.

The "850" in the name generally means the final sheet has an effective covering width of about 850mm. This is a popular and versatile profile used widely for roofing and cladding.

This Machine is more than just a former; it is a complete system. This system integrates multiple functions. It performs uncoiling, precision leveling, and roll forming. It also handles cutting and automatic stacking. A central PLC controls the entire process. The system is designed for manufacturers and material suppliers. It meets the need for high output. It ensures consistent quality. It minimizes operational downtime.

Detailed Description

This 850 Corrugated Color Steel Roll Forming Machine unites robust mechanics with intelligent controls. Its operation progresses through distinct stages. Each stage is precisely orchestrated.

A. The Core Process: Roll Forming

The machine's core is the roll forming station. This station contains a series of paired rolls. Each roll is supported by a strong shaft. Each roll set progressively bends the strip into the corrugated shape. This cold-forming method avoids stretching or thinning the metal. Typically 12-18 or more stages ensure a profile that is both dimensionally accurate and consistent.

B. Integrated System Components

Decoiler: The production process begins here. A heavy-duty decoiler holds the large coil of raw material.It has a motorized mandrel and a brake to control the unspooling and maintain tension.

The Entry Guide and Pinch Rolls form the entry point. Their role is to guide the metal strip into the leveler and supply the initial driving power.

Leveling Machine: The metal is made perfectly flat before forming. A leveling machine uses multiple rollers to straighten the coiled stock. This ensures a flat sheet enters the former, which is critical for final product quality.

Roll Forming Mainframe: This strong, heavy frame has one primary job: to rigidly support all forming roll stations. It is built to withstand high forces. This robust construction ensures all components remain in perfect alignment.

Cutting System: There are two main types:

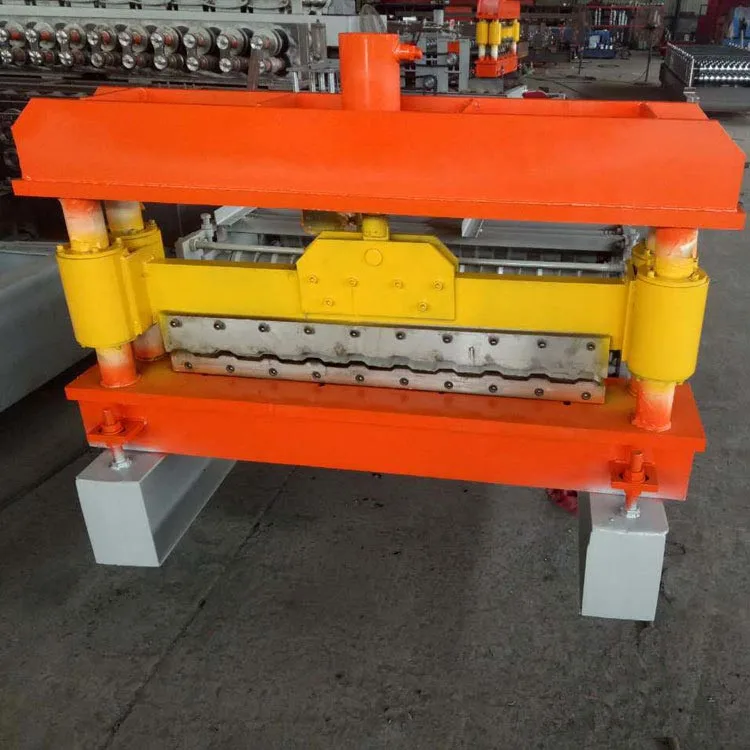

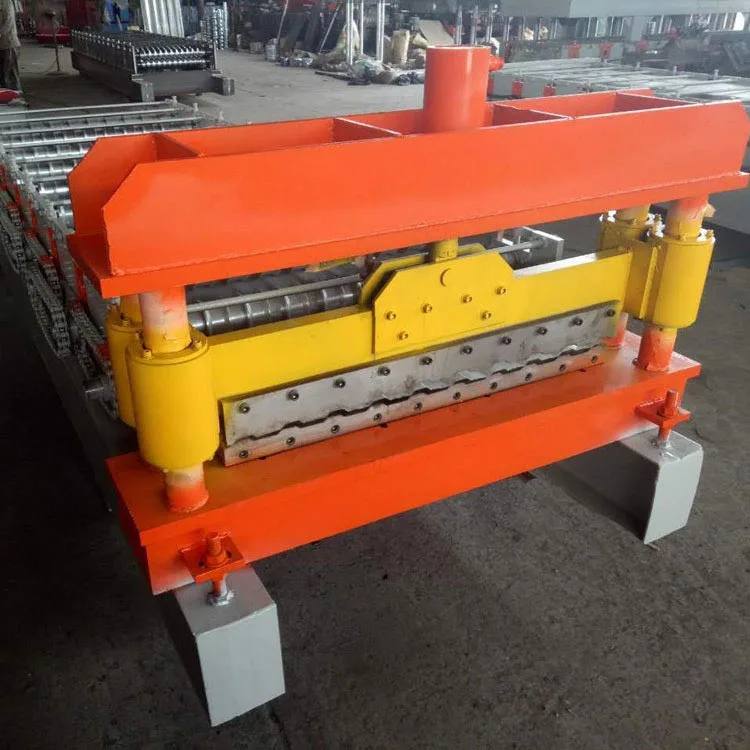

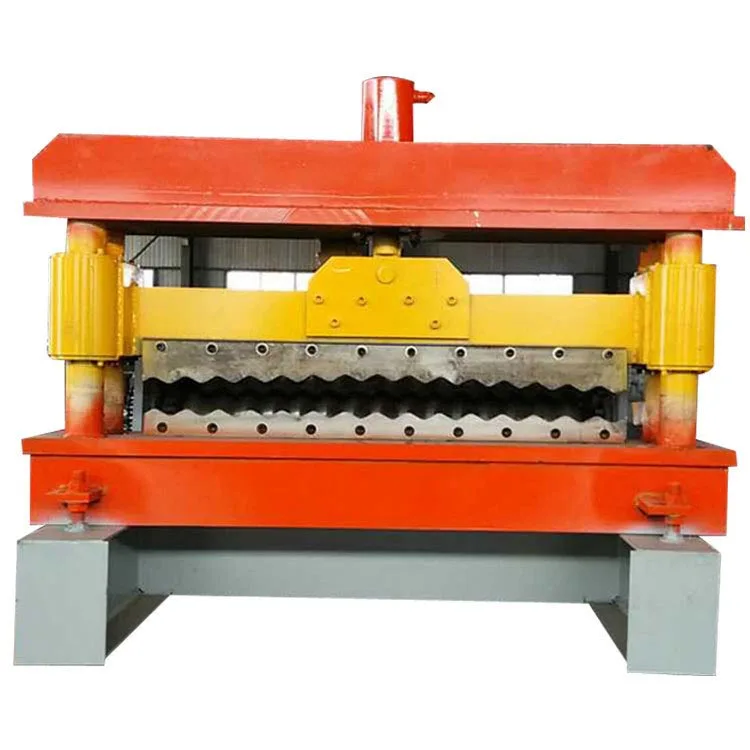

Flying Cut-Off System: This system is standard for high-speed work. The cutter matches the sheet's speed and makes a precise cut. It then returns to its starting point. This synchronized motion enables continuous line operation.

Hydraulic Station & Power: Its role is to supply hydraulic power. This powers the cutter and all other hydraulic components throughout the machine.

PLC Control Cabinet & Touchscreen: This is the machine's brain. The PLC automates and coordinates all components. The touchscreen lets operators set parameters (like sheet length and speed), monitor the machine, and troubleshoot problems. It often tracks production data.

Output Conveyor & Automatic Stacker: The automatic stacker transforms finished sheets into neat, counted stacks. This seamless automation allows for immediate strapping and shipping. The process significantly cuts manual labor while safeguarding product finish.

Application Scenarios

The 850 Corrugated Color Steel Roll Forming Machine made by this machine are a fundamental building material. They are strong, durable, and cost-effective, making them useful in many areas:

Industrial & Commercial Buildings:This product is commonly used in industrial and commercial buildings. These sheets are an ideal material for roofs and walls. They are used in factories, warehouses, workshops, and large stores. The sheets are strong and can span long distances.

Agricultural Buildings: It is suited for barns, silos, and other farm structures, with a profile that promotes efficient rainwater runoff.

Residential Roofing: These sheets are often used for houses, sheds, and modern architectural designs. They provide a roof that is both durable and attractive.

Temporary Structures: Ideal for construction site offices, temporary shelters, and fencing — thanks to their quick installation and durability.

Renovation Projects: Commonly used to put a new, long-lasting roof over an existing old one.

Specialized Uses: These sheets can be specified for specialized industries. With materials like aluminum or stainless steel, and appropriate coatings, they meet the needs of chemical and food processing plants.

Key Parameters

Specifications can vary by manufacturer, but a typical high-performance Machine would have the following parameters:

What are the advantages of this product?

Own the competitive edge with Machine. Here's how this investment gives you an advantage：

High Efficiency & Automation: The process is fully automated from decoiling to stacking. A single operator can manage the entire line. This results in massive output with very low labor costs.

Superior Product Quality & Consistency: First, the metal is shaped in multiple stages. Then, our precision rolls finish the work. The result: sheets that are perfectly uniform and exactly alike.The sheets are free from distortions and surface damage. This consistent quality increases the market value of the final product.

Remarkable Flexibility: Quick-change tooling lets you diversify your product line with one machine. Meet any market demand instantly, with a PLC that adjusts sheet length and output on command.

Significant Material Savings: The process is highly efficient. Through precision engineering, the machine eliminates waste from manual methods so that every raw material is used to its fullest.

Durability & Low Maintenance: We use premium components and hardened, chrome-plated rolls. This robust construction is built to endure years of service with very little maintenance.

Enhanced Operational Safety: Integrated safety guards and emergency stops protect operators, while automation limits their contact with moving parts. Together, these features establish a much safer workplace.

Excellent Return on Investment (ROI): You get high output, low labor costs, minimal waste, and consistent quality. This delivers a quick return on your investment. It also establishes a foundation for strong, lasting profitability.

Critical Details & Design Features

In the 850 Corrugated Color Steel Roll Forming Machine, the key details directly shape performance, durability, and product quality.

Roll Design & Manufacturing:The forming rolls undergo a precise journey. Starting as high-grade alloy steel, they are CNC-machined, heat-treated for extreme hardness, then precision-ground and chrome-plated. This ensures superior wear resistance, a long operational life, and a perfect, scratch-free finish on the sheet.

Shaft & Bearing Assembly: High-strength, solid steel shafts are used. They are paired with high-precision, heavy-duty tapered roller bearings. This design eliminates deflection under load. It ensures perfect roll alignment and withstands continuous operation.

Robust Mainframe Construction:The mainframe is constructed from thick steel plates and fully welded into a single, rigid structure, guaranteeing unwavering stability.This stability is crucial for maintaining precision during the forming process.

Advanced Control System: At the core is an intelligent PLC and HMI. This system enables proactive monitoring of speed and output, while its diagnostic tools guide you to problems, minimizing downtime.

Precision Flying Cut System: The servo-driven or hydraulic cutting system syncs perfectly with the sheet movement. It uses guided, linear motion for a square, clean cut every time. This results in minimal burrs.

Auxiliary Systems: It's the details like adjustable decoiler guides, tension control, and non-scratch rollers that define a well-designed machine.

Ease of Maintenance:Maintenance is straightforward. Grease points are easily accessible, components swap out modularly, and clear documentation guides you every step of the way.
