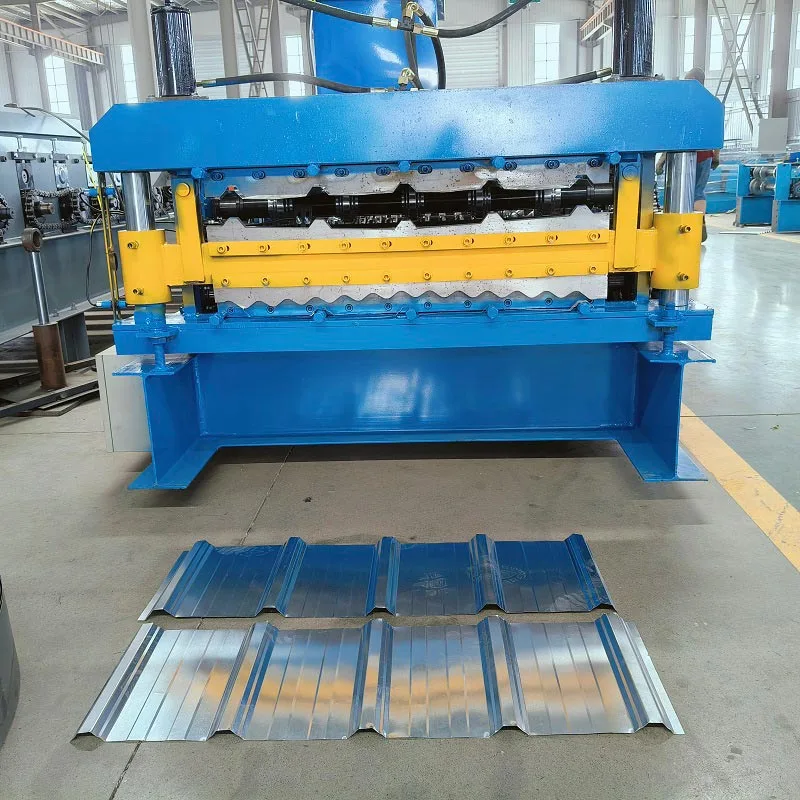

High speed Roof Panel Roll Forming Machine

The term "high-speed" is its key feature. These High Speed Roof Panel Roll Forming Machines are built for maximum production efficiency. Their line speeds are much higher than standard roll formers. Speeds often exceed 100 meters per minute. This makes them essential for large-scale construction. Metal building manufacturers and panel producers also rely on them. They need consistent output, superior quality, and fast turnaround times. This helps meet tight schedules and high demand.

How does this machine work?

This High Speed Roof Panel Roll Forming Machine is a complex system. It integrates mechanical, electrical, and hydraulic/pneumatic parts. Its operation can be broken into key stages.

A. Uncoiling and Feeding

The process starts with a decoiler. It holds a large, heavy metal coil. An automatic feeding mechanism straightens the sheet. It then feeds it smoothly into the roll forming section. Advanced systems have double decoilers. This allows for non-stop production. A new coil can be loaded and welded to the old one without stopping the machine.

B. Pre-Punching and Notching (Optional but Common)

Many high-speed machines include a servo-controlled punching station. This happens before the forming process. The unit can punch holes, create louvers, or make notches. Servo-driven technology ensures extreme accuracy. It synchronizes the punch locations with the panel length. This is crucial for screw holes or ventilation openings.

C. The Roll Forming Process - The Core

This is the heart of the machine. It has a series of stands. Each stand contains a set of hardened steel rollers. Each stand performs a small, incremental part of the shaping.

Stations: A typical machine for a complex profile may have 15 to 25 stations. The first few stations make gentle, initial bends. Later stations progressively deepen and refine the shape.

Rollers: The rollers are custom-designed for a specific panel profile. They are CNC-machined. They are made from hardened steel, like D2 or Cr12MoV. This ensures high hardness and wear resistance. It guarantees long life and consistent quality.

Shafts and Housing: The shafts and housings are robust and rigid. They must withstand high forces generated at high speeds. This prevents deflection and ensures the product's dimensional accuracy.

D. Cutting and Control System

After the panel is fully formed, it moves to the cutting station.

Flying Cut-off: This is a critical feature for high-speed operation. The cutting unit moves synchronously with the advancing panel. It makes a clean, burr-free cut at the pre-set length. The material flow does not stop. After the cut, the unit rapidly returns to its start position.

PLC and HMI: A Programmable Logic Controller (PLC) governs the entire process. An operator inputs parameters on a User-Friendly touchscreen (HMI). The PLC synchronizes the decoiler, pre-punching, roll forming drives, and flying cut-off. It also provides diagnostic information and production data.

E. Output Handling

An automatic stacking system collects the finished panels, organizing them into neat stacks for packaging and shipping. All of this minimizes manual handling and reduces the risk of surface damage.

Application Scenarios

Large-Scale Construction: These High Speed Roof Panel Roll Forming Machines produce roofing and siding panels. These panels are used in warehouses, factories, and shopping malls.

Prefabricated Metal Buildings: Companies use them to produce their proprietary panel profiles efficiently.

Cold Storage Panels: They form the metal skins that are bonded to insulating foam cores.

Standing Seam Roof (SSR) Systems: They produce high-integrity panels for architectural designs, known for their longevity and weathertight performance.

Solar Panel Mounting Structures: They produce the long, custom-shaped rails and brackets for large-scale solar farms.

Key Parameters

Key Advantages

Exceptional Production Efficiency

These High Speed Roof Panel Roll Forming Machines run at very high speeds. They produce more panels per hour. This lowers the labor cost for each unit. It also allows manufacturers to complete large orders quickly.

Superior Consistency and Quality

The process is fully automated and precise. It removes human error. Every panel has the same dimensions and shape. This ensures a perfect fit during installation and a high-quality finish.

Material Efficiency and Low Waste

The roll forming process is very efficient. It creates very little scrap. Waste only comes from the coil ends and punched holes. Precise length control also prevents overproduction.

Operational Flexibility

Quick-change roll systems allow for fast profile adjustments. This lets one production line make different panel types. The PLC can store countless recipes for various products.

Reduced Labor Dependency

The system is highly automated from start to finish. Often, just one operator can run the entire line. This optimizes workforce allocation.

Enhanced Safety

The Machines have safety guards and emergency stops. Automated processes reduce operator contact with moving parts. This creates a much safer work environment.

Critical Design and Manufacturing Details

A High Speed Roof Panel Roll Forming Machine's superiority comes from its construction details.

Gearbox Design

High-speed machines often use one central motor. It connects to a heavy-duty gearbox. This gearbox drives all the forming stations. This design ensures perfect synchronization. It prevents slippage and "chatter" at high speeds. This is critical for profile accuracy and surface finish.

Shaft Diameter and Rigidity

The forming shafts are much larger than in standard machines. Their diameter is often 80mm or more. This great rigidity prevents bending under high load. It ensures the panel profile is consistent across its entire width.

Precision Rollers

The forming rollers are very hard. They are also ground and polished to a mirror finish. This high-quality surface prevents scratches on the panel. It ensures a flawless, market-ready appearance.

Robust Base Frame

The entire machine sits on a heavy, reinforced base. This frame is made from thick steel plates. Its mass dampens vibration. This is essential for stable, smooth operation at high speeds.

Advanced Control System

The control system does more than basic operations. It can diagnose faults automatically. It reports production data and tracks downtime. It also offers network connectivity for factory-wide integration.

Lubrication System

Many high-speed machines have automatic lubrication. This system continuously oils the forming stations. It reduces maintenance downtime and extends the life of components.
