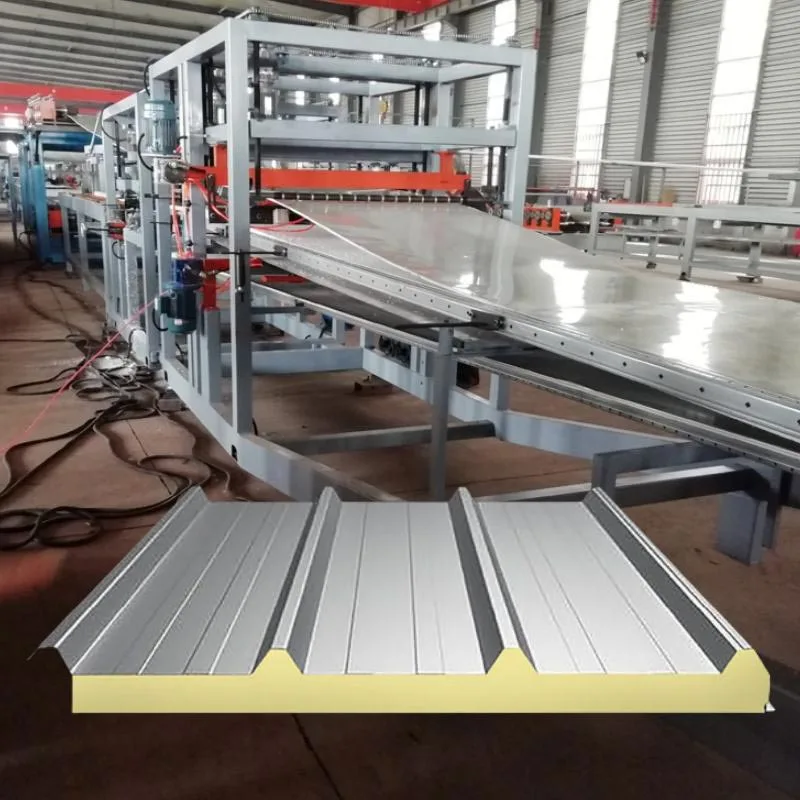

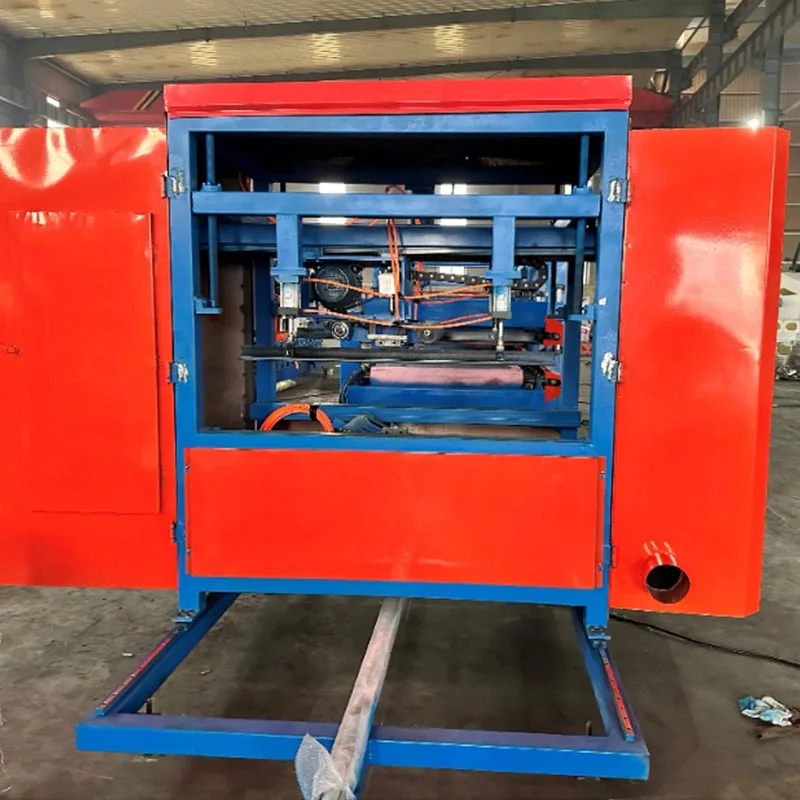

Rockwool Sandwich Panel Machine

A Rockwool Sandwich Panel Machine produced by Parfu International Trading Co., Ltd. is a highly automated production line. It makes rockwool sandwich panels. These panels are important in modern construction. They offer excellent insulation and are very strong.

Send Inquiry

Product Description

The Rockwool Sandwich Panel Machine uses raw materials. It processes them and produces finished, high-quality panels. The process is continuous and efficient. Every panel is consistent and precise. This Machine is essential for building material manufacturers.

Standard Technical Parameters

No	Item	English Parameter
1	Composite Main Machine Length	9m
2	Feeding Mechanism Length	9m
3	Cutting Machine Length	4m
4	Total Equipment Dimensions	Length 45m, Width 2.2m, Height 2.4m
5	Main Machine Lead Screw Configuration	Equipped with 8 T-type lead screws
6	Total Equipment Power	32kw
7	Working Voltage	380v
8	Production Speed	0—6m/min
9	Edge Pressing Wheel Treatment Process	Electroplating treatment
10	Transmission Shaft Specification	Cold-drawn steel with diameter 40mm (default unit: mm)
11	Electrical Control System Configuration	Delta PLC with 7-inch color touchscreen, Sanjing inverter,Rongde counter, Shanghai Dasu motor,Shanghai Shuangzhou glue pump
12	Pneumatic System Brand	Pneumatic system: Shenchi Pneumatic, Delta
13	Site Requirement for Normal Operation	Site requirement for normal operation: Length 45m, Width 4m, Height 7m
14	Corrugated Frame Function	Corrugated frame function: Automatic lifting
15	Commissioning Materials Requirement	Commissioning materials: 3 color steel coils (3-5 tons per coil), 1 barrel each of A glue/B glue (suitable for current ambient temperature), EPS boards (appropriate quantity of various specifications)

Coil Feeding Process

1. Upper Color Steel Coil Feeding Processload upper color steel coil → color steel cutting → grooving → adhesive spraying → socket plate forming → adhesive spreading → heating → laminating → cutting (length-set) → conveyor rack → transportation & stacking

2. Lower Color Steel Coil Feeding Processlower color steel coil uncoiling → grooving → corrugated forming → adhesive spraying → adhesive spreading → laminating → cutting (length-set) → conveyor rack → transportation & stacking

3. Overall Core Production Processesbeading → gluing → laminating → flanging → grooving → edge trimming → pneumatic drive → automatic cutting

Rockwool Sandwich Panel Machine
