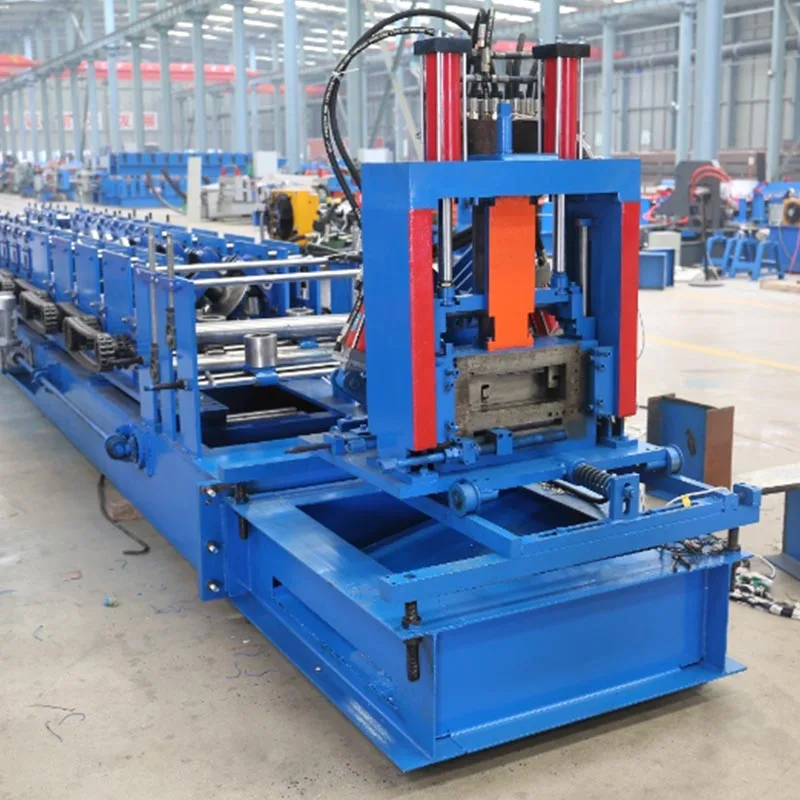

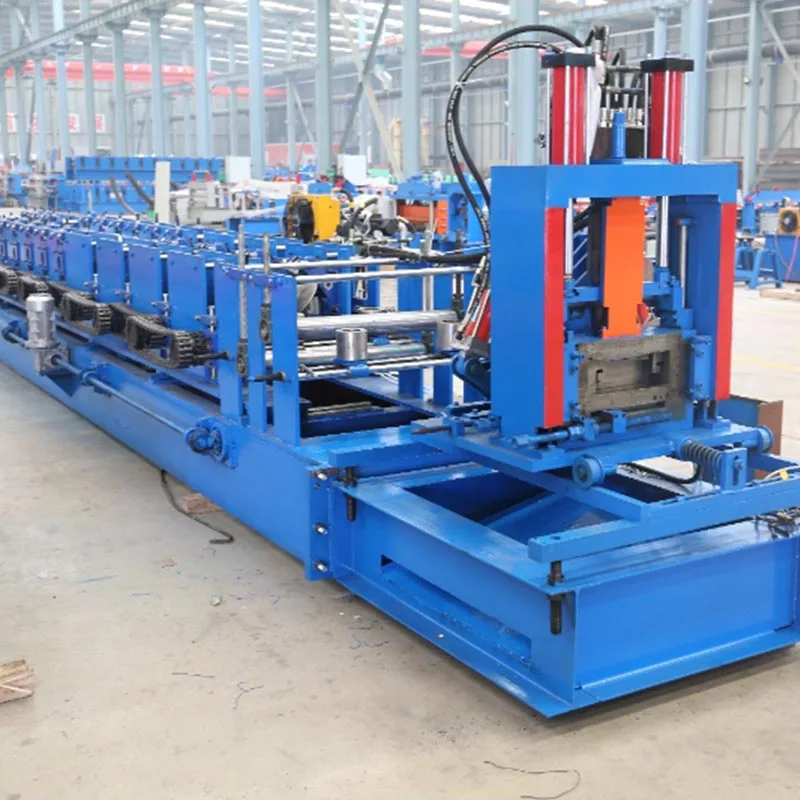

C Purlin Roll Forming Machine

The C Purlin Roll Forming Machine works through a roll forming process. A steel strip is bent by multiple sets of rollers. The strip slowly transforms into a "C" shape. Finally, it is cut to the required length.

This Machine is the backbone of metal frame construction. It enables rapid, cost-effective production. It creates consistent, high-quality structural elements. The machine is essential for many industries. Its high automation and efficiency make it a key tool. Steel frame manufacturers, metal building fabricators, and material suppliers all rely on it.

Detailed Description

TheC Purlin Roll Forming Machine runs a smooth, automated cycle. Its workflow involves several key stages.

A. The Roll Forming Process:

Uncoiling and Straightening: A steel coil is loaded onto the decoiler. The strip must be flat before forming. A leveling machine flattens it. This step ensures the purlin's accuracy.

Pre-punching (Optional but Common): The flat strip often goes through a punching unit first. This unit creates precise holes, slots, or notches. These features make on-site assembly faster and easier. They provide pathways for pipes, conduits, and bolts.

Roll Forming Section – The Heart of the Machine: The flat steel strip enters this station. It is progressively shaped into its final C-profile. Many sets of top and bottom rollers guide this process. Each set bends the steel a little more.

The first few stands create the initial bends for the two flanges.

Later stands gradually deepen the web and finalize the flange angles.

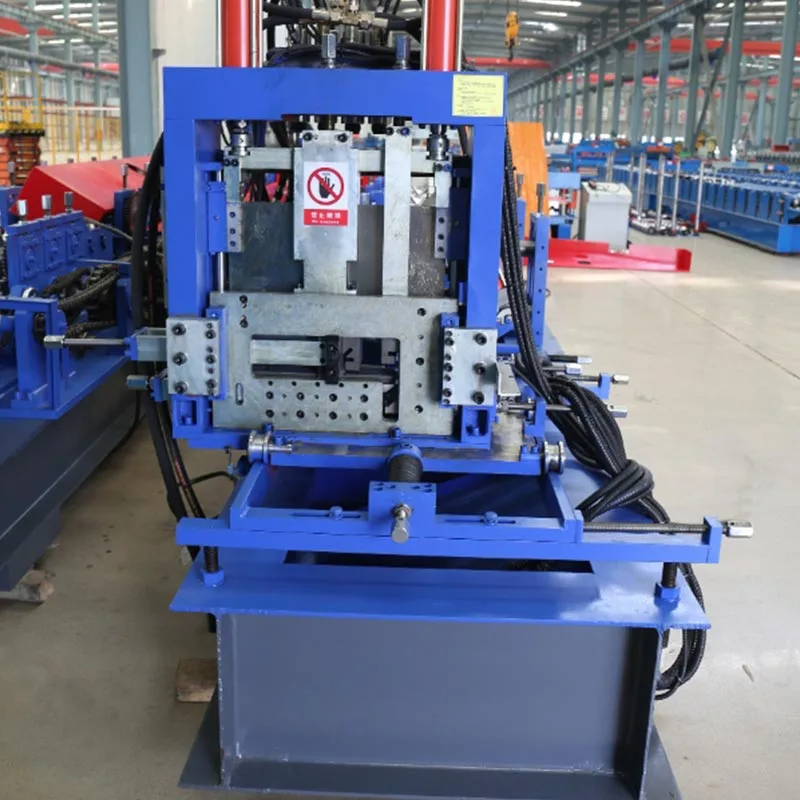

Cutting to Length: The fully formed C-section moves to the cutting mechanism. A hydraulic or servo-driven "flying" cut-off system is standard. It moves with the purlin, makes a clean cut, and then returns to its start position. This allows for continuous production without stopping.

Output and Stacking: Finished purlins are automatically conveyed and stacked. This enables smooth, continuous production.

B. Core Components:

Decoiler: Holds the steel coil.

Leveling Machine: Flattens the steel strip.

Punching Unit: Creates holes or notches in the flat strip.

Roll Forming Stations: Multiple stands of rollers that progressively shape the steel.

Servo Cutting System: Achieves clean, right-angle cuts with precision servo motors.

Hydraulic Power Pack: This unit acts as the machine's heart, generating the consistent, reliable power required for both the punching and cutting operations.

PLC Control System: This is the central control unit. It controls all functions with high precision. Operation is simple through a user-friendly touchscreen.

Output Conveyor/Stacker: It automatically conveys cut purlins away and neatly bundles them into stacks, streamlining the end of the production line.

Application Scenarios

C Purlin Roll Forming Machines are a cornerstone of modern construction, serving any application where structural strength is paramount.

Pre-Engineered Metal Buildings (PEMBs): This is the primary use. The machine produces purlins and girts for warehouses, factories, aircraft hangars, and large commercial buildings.

Commercial Construction: These purlins provide structural support. They are key components in the roofs and walls of diverse structures, from shopping malls and logistics centers to large sports complexes.

Residential Steel Framing: For residential Light Gauge Steel Framing (LGSF) in houses and apartments.It is a durable, termite-proof alternative to wood.

Solar Power Mounting Systems: Manufactures the support structures for ground-mounted and rooftop solar panels.

Greenhouse Structures: Produces the straight or curved support members for large agricultural greenhouses.

Container and Modular Buildings: Creates the main frame for prefabricated and portable building units.

Storage Rack Systems:The machine is flexible enough to manufacture storage rack components. This is achieved by simply reconfiguring its settings.

Key Advantages

Exceptional Consistency and Precision: The roll forming process ensures every purlin has an identical cross-section, guaranteeing perfect uniformity. This ensures structural integrity and simplifies assembly.

Significant Cost Reduction: The machine uses raw coil steel, which is more economical. Full automation also dramatically cuts labor costs and material waste.The cost per purlin is lower.

Flexibility and Customization:The machine can be quickly adjusted to produce different C-purlin sizes. By simply changing the rollers and updating the PLC program, it is ready for a new production run. Punching patterns are fully customizable for any project.

Material Strength Preservation: The cold-forming process hardens the steel at the bends. This makes the final product stronger and more rigid. The steel's chemistry remains unchanged.

Minimal Waste: The roll forming process is very material-efficient. It creates far less scrap compared to methods like press braking.

Integrated Operation: The system combines all steps into one seamless line. This slashes handling time and eliminates the need for multiple separate machines.

Technical Parameters

Note: Many machines are designed to be adjustable, capable of producing a range of C-purlin sizes by changing the rollers and settings.

Key Advantages

A C Purlin Roll Forming Machine offers many strong benefits. It is a smarter choice than buying pre-made purlins or using other methods.

High Efficiency: The machine can run non-stop, 24/7. It produces tens of meters of finished purlin every minute. This greatly increases your production capacity.

Excellent Consistency: Every purlin produced is identical. This uniformity is crucial for structural strength. It also makes assembly on site faster and easier.

Lower Costs: The machine saves money. It uses coiled steel and is fully automated. This reduces both labor costs and material waste. Your cost per unit goes down.

Great Flexibility: You can quickly change the purlin size. Simply swap the rollers and update the PLC settings. This lets you run different C-purlin sizes with minimal delay.

Stronger Product: The roll forming process actually strengthens the steel at the bends. The result is a stiffer, tougher purlin. The steel's chemical properties remain unchanged.

Less Waste: This method is very efficient with materials. It creates far less waste than press braking; the press method requires larger blanks, resulting in more off-cuts.

Integrated Process: The entire production line is integrated into one smooth operation. This reduces handling time and eliminates the need for several separate machines.

Important Details and Features

The true value of a modern C Purlin Roll Forming Machine is in its details. Key features define its performance, ease of use, and safety.

Quality Rollers: The rollers are the most critical parts. They are made from high-grade bearing steel. They are heat-treated so that the surface becomes hard and the core remains tough. This results in a long service life and excellent wear resistance.

Strong Shafts and Housings: Made from heat-treated, high-strength alloy steel, the shafts are supported by robust, double-bearing housings. This setup prevents bending during high-speed operation, which is vital for product accuracy.

Advanced Controls: A central PLC with a touchscreen allows operators to control all parameters. They can set production data, save job recipes, and monitor real-time machine status and diagnostics.

Servo-Driven Technology: Servo systems are common in modern machines. They are a precise and quiet alternative to hydraulic systems. Servos are more accurate, energy-efficient, and offer superior control.

Automatic Lubrication: An integrated central lubrication system is common. It works by automatically oiling the rollers and bearings at timed intervals. This cuts manual maintenance, reduces wear, and prevents overheating.

Safety First: Operator safety is a core focus. The machine has integrated guards, multiple emergency stop buttons, and electrical overload protection.

Quick Changeover: You can switch between purlin sizes quickly. Operators can make simplified adjustments. This minimizes downtime and boosts overall efficiency.

The C Purlin Roll Forming Machine is a masterwork of industrial engineering. It turns a simple steel coil into a vital structural component. It does this with remarkable speed, precision, and economy. Its role in our modern world is huge, from building industrial complexes to supporting solar farms. For any metal construction business, this machine is a strategic investment. It drives productivity, quality, and competitive advantage.
