Automatic Z Purlin Roll Forming Machine

Primary Applications and Use Cases

Z purlins are essential in steel frame construction. The Automatic Z Purlin Roll Forming Machine that makes them is vital for many industries.

Commercial and Industrial Buildings:Z purlins are most commonly used to support the roofs and walls of large buildings. You will find them in warehouses, factories, airplane hangars, and shopping malls. Their design allows them to be overlapped. This creates strong structures that can span long distances.

Agricultural Buildings: They are used in barns, storage sheds, and greenhouses. Their light weight and high strength are ideal for these structures.

Solar Power Farms: Large-scale solar panel mounting structures rely heavily on Z purlins. The automatic machine can produce long, custom-length purlins. This reduces on-site joints and speeds up installation.

Support Structures: They are used for mezzanine floors, platform frames, and as supports for ceiling systems.

Renovation and Expansion Projects: The ability to produce custom profiles and lengths makes these machines perfect for retrofit projects.

Conventional Technical Parameters

The Automatic Z Purlin Roll Forming Machine specifications vary by brand, yet the key parameters are largely the same.

Material Thickness: It processes material from 1.5 mm to 3.0 mm. Heavy-duty models can handle thicknesses up to 4.0 mm.

Material Width: The input coil width usually ranges from 900 mm to 1250 mm.

Finished Purlin Height: The leg height of the Z purlin (the "Z" dimension) can range from 100 mm to 300 mm.

Flange Width: The top and bottom flanges can range from 50 mm to 90 mm.

Production Speed: This is a key metric. Speeds typically range from 15 to 30 meters per minute. This depends on the material thickness and profile complexity.

Punching Capacity: The machine can punch bolt holes, service holes, and slots. The punching unit can exert a force of 20 to 50 tons.

Control System: A centralized Programmable Logic Controller (PLC) and Human-Machine Interface (HMI) touchscreen. This is the brain of the operation.

Drive System: High-precision servo motors for the punching and cutting units. Robust AC motors for the roll forming stations.

Hydraulic System: Powers the punching and cutting mechanisms. It is designed for high pressure and stability.

Key Advantages and Benefits

The Automatic Z Purlin Roll Forming Machine is dramatically more efficient than both manual and semi-automatic methods.

High Production Efficiency: It is a continuous operation. The machine produces finished purlins in a single pass. This dramatically increases output compared to traditional methods.

Exceptional Dimensional Accuracy: Each purlin is identical. The machine creates perfectly uniform parts. This means everything goes together smoothly during construction.

Reduced Labor Costs: One or two operators can manage the entire production process. The machine automates the most labor-intensive tasks.

Minimal Material Waste: The machine uses coil stock. It cuts to exact lengths. The system significantly cuts down on scrap material. This is a major advantage over using pre-cut sheets.

Operational Flexibility: The PLC can store hundreds of different product profiles. Changing from one Z purlin size to another is quick and easy. It involves calling up a new program on the HMI.

Integrated Processing: The machine performs multiple operations simultaneously. It forms, punches, and cuts in a single, integrated cycle, removing the need for separate stations.

Enhanced Safety: It protects operators with enclosed moving parts, safety guards, and emergency stop buttons.

Superior Strength and Quality: The cold roll forming process work-hardens the steel, thereby increasing the final product's strength along the bends.

Detailed Machine Components and Function

A. Decoiler and Loader

This is the starting point. A heavy-duty mandrel holds the large steel coil. Hydraulic arms or a cantilever system assist in loading the coil. An automatic mandrel expands to grip the coil from the inside. A peeler plate ensures the coil feeds smoothly into the machine.

B. In-Feed Guide and Leveling Unit

The strip is first leveled to ensure perfect flatness—a requirement that is fundamental to final quality.

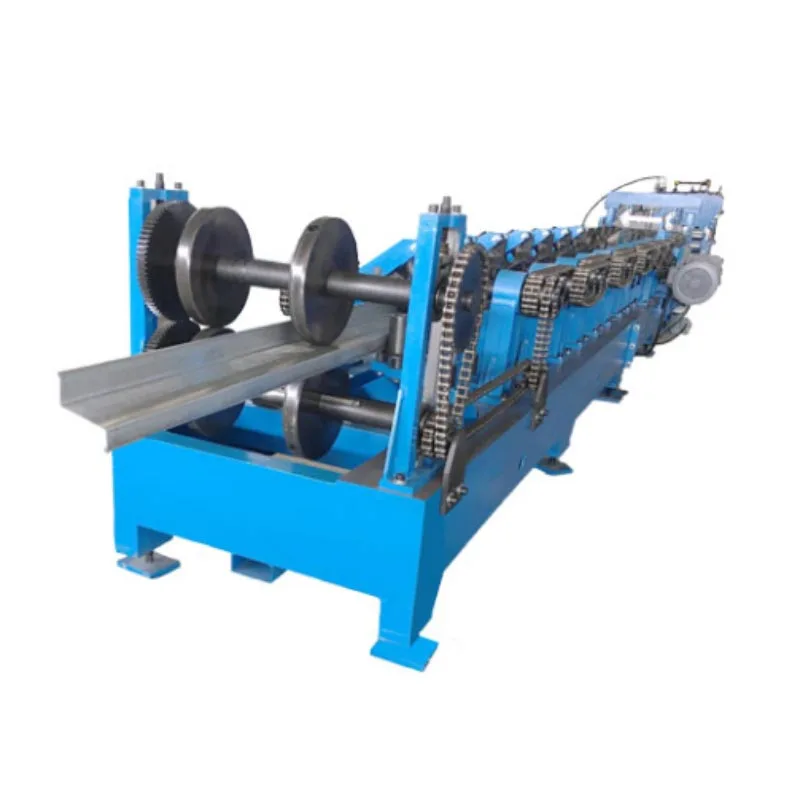

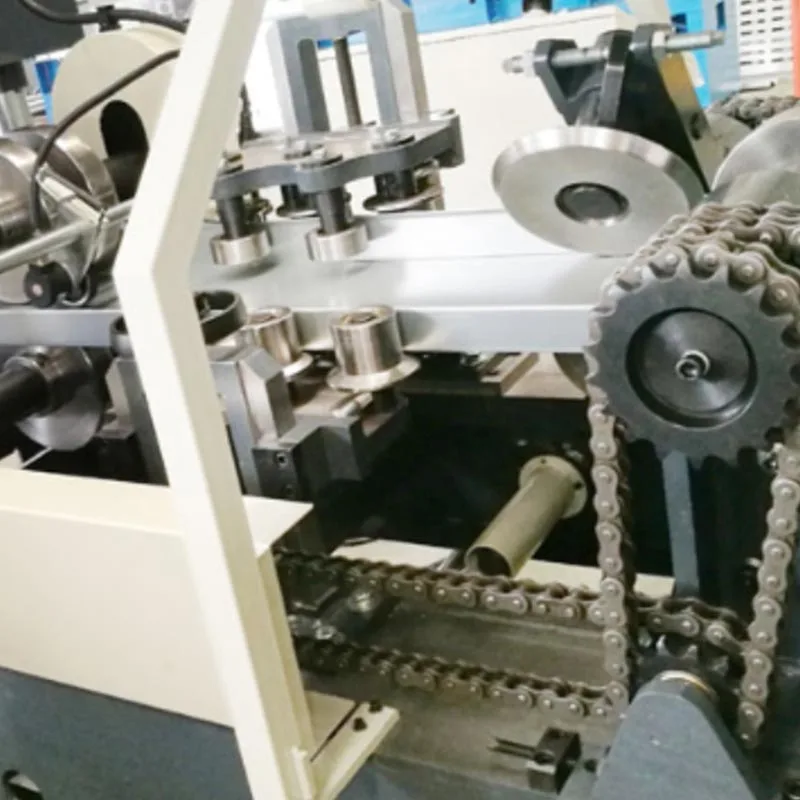

C. Roll Forming Station

This station is the heart of the machine. It is built from a series of paired roller dies on sturdy stands. Each pair progressively bends the strip into the final Z-shape.The number of forming stands can vary. A typical machine has 16 to 22 stands. More stands allow for a smoother, more precise forming process. This reduces stress on the material.

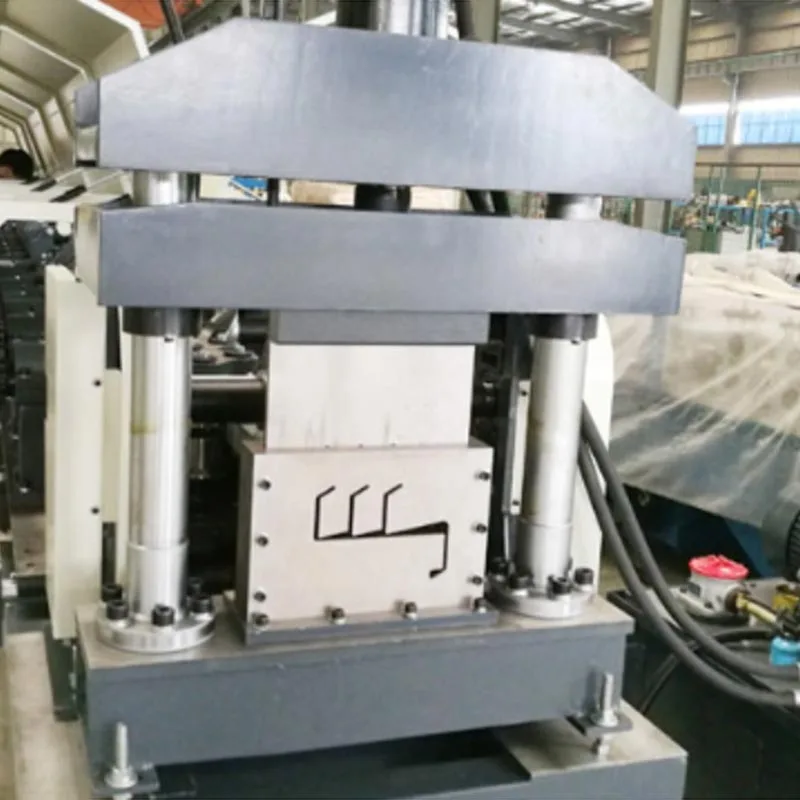

D. Punching and Cutting Unit

This unit is located after the forming station. It is driven by high-precision servo motors.

Punching: A hydraulic punching unit creates holes in the web or flange of the purlin. The punching pattern is fully programmable: it can include features such as round holes, oblong slots, or custom shapes.

Cutting: A flying cut-off system is used. The cutting tool moves synchronously with the moving purlin. It makes a clean, burr-free cut without stopping the production line. The cut length is programmed into the PLC with high accuracy.

E. Control System (PLC and HMI)

The PLC is the Automatic Z Purlin Roll Forming Machine's brain, coordinating all motions. All operator control happens through an intuitive touchscreen (HMI) for inputting parameters like length and hole patterns. With this system, operation is simple and powered by built-in diagnostics.

F. Out-Feed Table and Stacking System

The finished Z purlins are conveyed out of the machine. An automatic stacking system organizes the purlins into neat bundles. This makes them easy to handle, transport, and ship to the construction site.

The Step-by-Step Production Workflow

This entire process operates as one seamless, automated sequence.

Coil Loading

A new steel coil is loaded onto the decoiler using an overhead crane or forklift. The mandrel expands to lock the coil in place. The leading end is then fed into the leveling unit.

Material Leveling and Feeding

The strip passes through a set of leveling rollers. These rollers apply precise pressure to remove any curvature from coiling. The now-flat strip is fed forward into the roll forming station.

Progressive Roll Forming

The steel strip moves through each stand of the former. The strip passes through a series of roller stations. At each station, it receives a precise bend, progressively evolving from a flat strip into a finished Z-section. This gradual forming protects the material's integrity.

Servo-Driven Punching and Cutting

The formed Z purlin enters the punching and cutting unit.

The PLC signals the punching unit to create the programmed hole pattern. Holes are made with precision at the exact specified locations.

At the same time, a flying cut-off system tracks the moving purlin. Once the preset length is reached, the cutter clamps on, moves with the material, and makes a clean, square cut. It then returns to its starting point for the next piece.

Output and Stacking

The finished Z purlin moves along the out-feed conveyor. An automatic stacker counts the pieces and groups them into bundles of a set size. A forklift is then used to remove the completed bundles.

The Automatic Z Purlin Roll Forming Machine is more than just factory equipment. It is a highly sophisticated production system. It is automated, precise, and efficient.

For any metal construction company, this machine is a strategic investment. It increases production capacity and improves product quality. It also lowers operational costs and offers the flexibility to meet diverse project needs.

By providing reliable, custom components on demand, this machine delivers a decisive advantage in today's fast-paced construction industry. It is a cornerstone of modern infrastructure.
