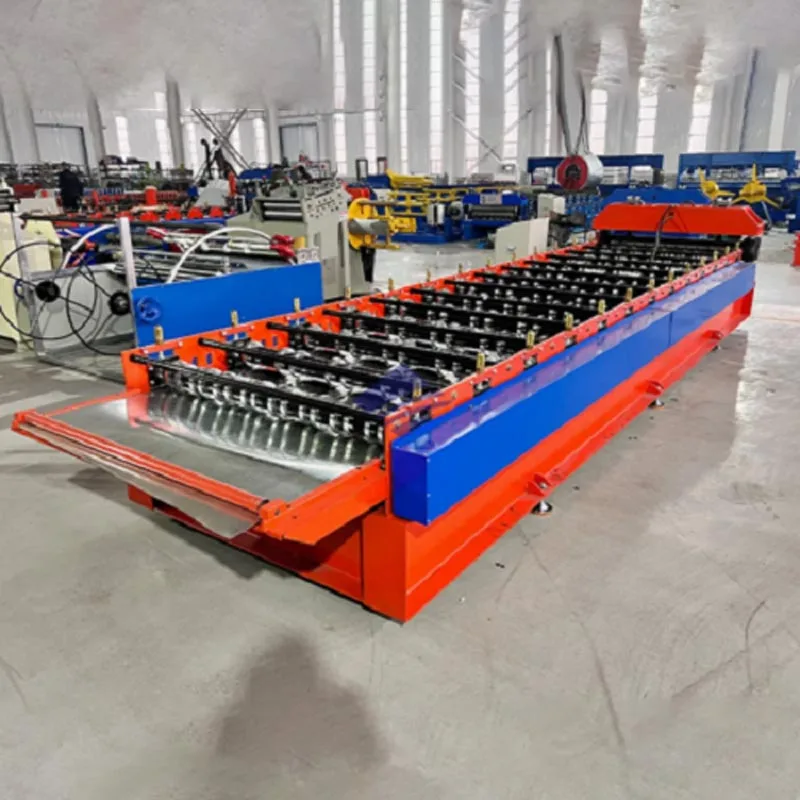

688 Deck Floor Roll Forming Machine

It processes raw sheet metal to create strong, corrugated panels. These panels provide the foundational support for concrete in floors and roofs. They are widely used across different sectors, from commercial and industrial complexes to residential homes.

The 688 Deck Floor Roll Forming Machine is built for precision, durability, and high output. It automates a critical step in construction. This greatly reduces labor costs and project time. It also ensures the final product is always high quality. The machine combines strong mechanical engineering with advanced controls. It is a vital tool for metal deck makers, construction material suppliers, and large contractors.

Machine Details

The 688 Deck Floor Roll Forming Machine is a full production line. It integrates uncoiling, roll forming, cutting, and stacking into one automated process.

1. Core Forming Process:

The main part is the roll forming system. It has a series of paired roller stations. There are typically 18 to 22 sets. They are mounted on a solid steel frame. Each station bends the flat steel strip step-by-step. The bends follow a carefully planned sequence. The process starts from the edges and moves to the center. The rollers slowly form the metal into the final 688 profile. This profile has trapezoidal ribs that are 68mm high. Forming the metal gradually is very important. It reduces stress on the material. This prevents scratching, warping, or distortion. The result is a panel with precise dimensions and excellent strength.

2. Key Components & Workflow:

The process starts at the decoiler. You load a master steel coil onto it. These coils are huge. They can weigh several tons.An automatic feeding car is available as an option to make loading these coils easier.

The steel strip travels from the decoiler to the entry guide. First, the guide aligns the strip. Then, it feeds the strip straight into the forming section.This precise alignment is essential for producing a consistent final profile.

Infeed Platform & Pre-punching Unit (Optional): The material passes over a leveling device first. This removes any curves from being coiled. For projects that need a stronger bond with concrete, a pre-punching unit can be added. This unit stamps holes or embossments into the flat metal before it is formed.

Roll Forming Station: This is the heart of the machine. The forming rolls are made from high-grade alloy steel. They are hardened for exceptional wear resistance and long life. The stations use high-precision bearings. This ensures smooth rotation and reduces power loss.

PLC & Servo Cutting System:The shaped profile then advances to the cutter. This operation is directed by the Programmable Logic Controller (PLC), which acts as the intelligent command center for the entire machine.It controls the entire cutting operation. A rotary encoder tracks how far the profile has moved. When it reaches the set length, the PLC tells a servo motor to start. The servo motor syncs the cutter's speed with the moving profile. A hydraulic or mechanical press then makes a clean, burr-free cut. This "flying cut" system means production never has to stop between cuts. It also prevents material waste.

Output Conveyor & Stacking System:The finished panels move along a conveyor. They reach an automatic stacking system. This system organizes the panels into neat bundles. It counts the panels in each bundle. The bundles are then ready for strapping and shipping.

3. Control System:

The intuitive touchscreen puts control at the operator's fingertips. Set panel length, production count, and speed with a few touches. The display shows real-time status and provides actionable fault alerts, enabling quick responses to keep downtime to a minimum.

Application Scenarios

The 688 deck profile from this  Machine is a versatile building product. It is used in many construction projects:

Commercial High-Rise Buildings: It serves as permanent formwork for concrete floors. It also acts as built-in reinforcement. This system is widely used in offices, hotels, and shopping malls.

Industrial Facilities: It is ideal for plants, warehouses, and logistics centers that require long-span, heavy-duty flooring.

Public Infrastructure:You'll find this system in airports, train stations, hospitals, and stadiums. It is extremely durable. Additionally, its installation is quick and efficient.

Residential Construction:It delivers the high-strength floor and roof systems required in multi-story apartment buildings.

Renovation Projects: It is perfect for adding new floors to old buildings. It is lightweight but very strong.

The 688 profile is designed to work together with concrete. The embossments on the panel create a strong mechanical lock with the concrete. This results in a single, solid slab. The slab can support heavy loads without sagging.

Technical Parameters

Key Advantages

Unmatched Efficiency and Productivity

Our roll forming process is automated and continuous. It far outperforms manual fabrication. The 688 Deck Floor Roll Forming Machine runs at speeds up to 25 meters per minute. It can operate 24 hours a day, seven days a week. This means it produces vast quantities of decking. You can meet the demands of the largest construction projects. Lead times are significantly shortened.

Superior Precision and Consistency

Every panel produced is identical. Each has exact dimensions, rib height, and flange width. This precision eliminates fitting issues on site. It ensures uniform concrete coverage. It also guarantees predictable structural performance, just as engineers calculated.

Exceptional Durability and Low Maintenance

The machine features a frame built from heavy-duty steel plates and profiles. Its robust construction and welded design effectively resist vibration, ensuring long-term stability.It is built to last for decades. The forming rollers are very hard and wear-resistant. They maintain their profile over millions of cycles. This means less frequent replacement and long-term product stability.

Remarkable Material and Cost Savings

The flying cut system eliminates scrap loss from other methods. Raw coil material is used very efficiently. This significantly lowers the cost per square meter of finished deck. The savings come from reduced labor and faster production.

Operational Simplicity and Flexibility

The PLC control system is intuitive. Setup is quick and operation is easy. To change production lengths, just enter a new value on the touchscreen. Quick-change tooling is often available. This lets you adapt the same machine to produce different profile heights or styles. It offers great flexibility.

Enhanced Safety

Safety is a key part of the design. The machine has integrated safety guards. Emergency stop buttons are located at both ends. Electrical overload protection is also included. This creates a safe working environment for all operators.

What are the components of this product?

The 688 Deck Floor Roll Forming Machine shows superior attention to detail and component quality.

Robust Machine Frame: The main frame uses high-quality #45 steel plate. It is stress-relieved to prevent deformation under load. All welding is robotic. This ensures maximum strength and consistency.

Precision-Ground Forming Rollers: Each roller set is CNC-machined. They are then heat-treated to a core hardness of 58-60 HRC. Finally, the forming surfaces are precision-ground and polished to a mirror finish. This extends roller life. It also ensures a smooth, scratch-free finish on the deck panel, protecting its coating.

High-Precision Transmission System: The drive shafts are made from high-tensile #45 steel. They are ground and balanced to prevent vibration at high speeds. Smooth, efficient power transmission is key to this machine's performance. This is achieved by using premium bearings from brands like HRB or LYC, securely housed in robust bearing blocks.

Advanced PLC Control System: The advanced control system uses top international brands like Mitsubishi or Siemens for the PLC and servos. This guarantees reliability and precision, while making integration with other equipment simple. The intuitive HMI also provides clear process visuals and detailed error messages, enabling fast diagnostics.

Centralized Lubrication System (Optional): An automatic lubrication system is available. By continuously lubricating rollers and bearings, it cuts manual maintenance, minimizes wear, and ensures stable operation. This protects your investment.

Customization Options: You can tailor the machine to your needs. Tailor your machine to meet specific needs. Available options include an automatic decoiler, a pre-punching unit for holes, a post-paint coating line, and different stacking mechanisms.
